Easily set caster, camber, toe, wheel base, & more with increased accuracy. Featuring mono ball bearings & height and backspace adjustability allowing more accurate measurements. Our setup plates simply do the job better for less.

The height can be adjusted to be equivalent to tires between 80-92 in circumference in 0.5 increments. The offset design of the base, mounting orientation, & the use of spacers allows equivalent wheel backspace settings possible between 0.75" - 6" in relation to an 8" wide wheel (there is a downloadable table available with conversions for 8", 10", 12", & 14" wide wheels). All of this helps you to get a race accurate weight distribution of the racecar for further accuracy of measurements.

Wheel base can be measured using the vertical centered slots in each plate front to rear. Each plate has horizontal slots on each side to measure toe in/out. The outer corners of the base of the plates are cut to a 20 degree angle to aid with setting caster. All plates come with mono ball transfer bearings on the bottom to promote free movement & prevent binding that could otherwise occur and cause inaccurate alignment readings. The bearings have the ground clearance to allow camber settings from -12 degrees MAX to +12 degrees MAX

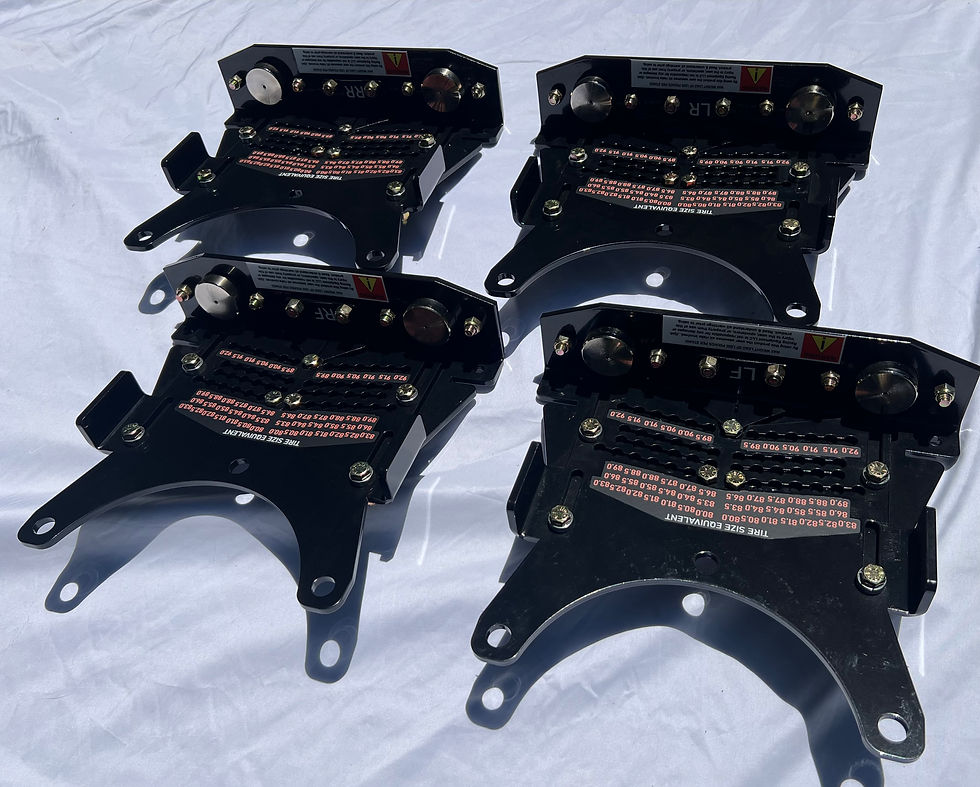

This is for the current Wide 5 bolt pattern version of the setup plates with the 80-92 tire size range.

These are offered in sets of 4 for $595 or sets of 2 for $305. $50 flat rate shipping.

NOTE: The video is for demonstration of movement under load only as the plate in the video is from a previous version of the setup plates.

NOTE: The plates may have light surface scuffs or scratches on them partly due to the gloss black powder coating making such minor imperfections more easily visible. The pictures are a good representation of the level of imperfections you may see, though they may be slightly better or worse. This in no way effects the function of the product and is purely cosmetic.
